Specification:

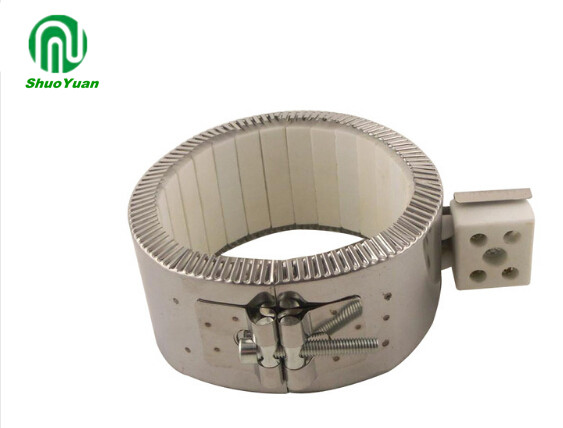

Design option: Ceramics with sheet metal casing

              Micanite with sheet metal casing

              According to customer specifications

Voltages available: 240V, 220V, 120V, 110V. Others available on request.

Wattage Tolerance: +5%, -10%

Resistance tolerance: +10%, -5%

Max operating temperature: 760 oC  (1400 oF)

Max watt density: 12W/cm2 (75W/in2) recommended

Min / Max diameter: 19mm (¾ Inch) / 915mm (36 Inch)

Min / Max width: 19mm (¾ Inch) / 150mm (6 Inch)

Options:  All band heaters available with earth wire.

         Moisture and water resistant seals available.

         240V ac standard. Other voltages available on request.

         Terminal connectors with or without terminal boxes available.

         Various plug options available.

         Bands can be manufactured as 1 piece or 2 piece construction.



Features&Benefits:

1. High thermal conductivity and low mass construction provides rapid response to temperature control and avoids thermal lag

2. Higher watt densities contribute to faster heat-up and throughput for increased productivity.

3. Operating temperatures up to 1400°F (760°C) allows safe melting of resins.

4. Stainless steel cover and side fold design resists contamination from overflow of plastic or other free-flowing materials



Application:

Autoclaves & Sterilizers

Blow Molding Machines (Barrels & Heads)

Blown Film Dies

Drum Heating

Extrusion Die

Fluidized Beds

Food & Candy Extruders

Food Service Warming Pots

Holding Tanks

Hot Runner Molding Bushings

Metallurgical Analyzation Equipment

Oil Reclamation Systems

Plastic Extruders

Plastic Injection Molding Machines

Pulp & Paper Processing Equipment

Vending Machines
